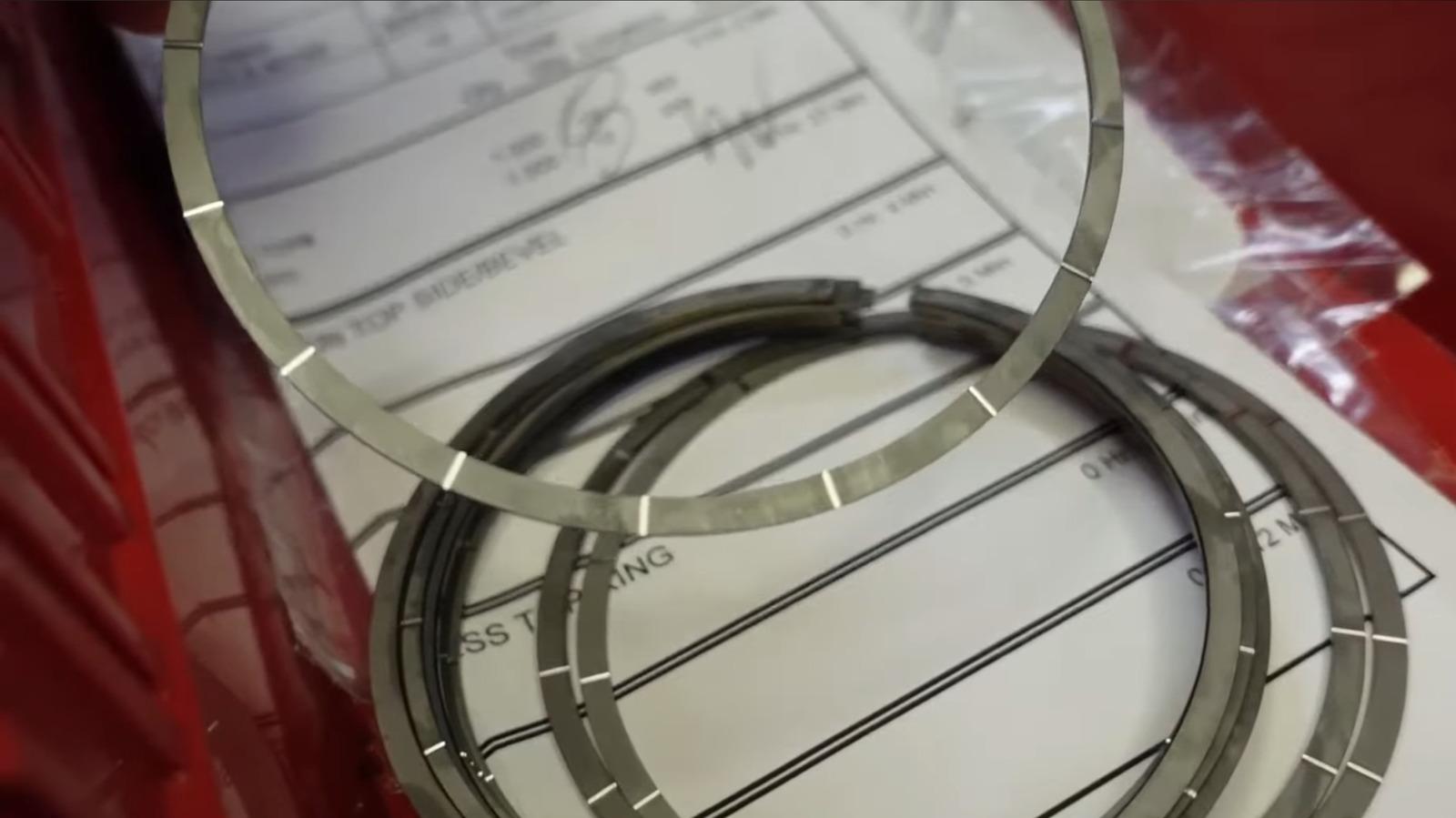

Image: Why Piston Ring End Gaps Matter More Than You Think – The Hidden Engine Detail That Boosts Performance – Performance Comparison and Specifications
When you think about engine upgrades, most of us picture turbochargers, performance camshafts, or even a fresh set of high‑flow injectors. Rarely does the conversation drift to something as modest‑looking as the end gaps of piston rings. Yet, those tiny spaces are a silent workhorse that can make the difference between a silky‑smooth idle and a rough, carbon‑laden nightmare. In this article we’ll dive deep into why piston ring end gaps deserve a spot on your maintenance checklist, especially if you drive a turbo‑petrol model like the 2024 Ford Focus ST or a high‑performance Mercedes‑AMG.
What Exactly Is an End Gap?
Definition and Function
The end gap is the tiny clearance left when the two ends of a piston ring meet after being installed in the cylinder bore. Think of it as the “breathing room” that allows the ring to expand when the engine heats up. Without that space, the ring would bind against the cylinder wall, leading to premature wear, loss of compression, and – in the worst case – catastrophic engine failure.
How Heat Affects Gap Size
As an engine runs, the metal expands. A typical steel ring can grow about 0.001 in per 100 °F. If the gap is too small, the expansion can cause the ring ends to contact each other, creating a hot spot that can warp the ring or score the cylinder wall. Conversely, an overly large gap lets excess blow‑by gases escape, reducing power and increasing emissions.
Why End Gaps Matter More Than You Think
Compression Integrity
Properly set gaps maintain optimal compression. In a turbo‑petrol engine, where boost pressures can exceed 15 psi, even a 0.2 mm deviation can translate to a loss of up to 5 % of peak horsepower. That’s the difference between a 0‑60 time of 6.2 seconds versus 6.8 seconds in a sporty hatchback.
Oil Consumption and Emissions
When the gap is too wide, oil can slip past the rings and burn in the combustion chamber. You’ll notice blue smoke at idle and higher CO₂ output – a red flag for both owners and regulators, especially in markets with strict Euro 7 standards.
Engine Longevity
Repeated rubbing from a tight gap accelerates wear on both the ring and the cylinder liner. Over time, this can lead to scored bores, increased oil consumption, and the dreaded “ring‑land” failure that mechanics love to hate.
How to Measure and Set the Correct Gap
Tools You’ll Need
- Feeler gauge set (0.10 mm to 0.50 mm)
- Micrometer or digital caliper
- Ring spreader (optional but helpful)
Step‑by‑Step Guide
- Remove the piston and clean the ring grooves thoroughly.
- Place the ring on a flat surface and bring the ends together gently.
- Insert the appropriate feeler gauge between the ends; the recommended gap is usually 0.30 mm for a 1.0 L engine and 0.40 mm for a 2.0 L – consult the service manual for exact specs.
- If the gap is out of spec, file the ends carefully with a fine‑grit file or replace the ring.
- Reinstall the piston, ensuring the ring sits correctly in its groove.
\
Most modern service manuals – whether for a Hyundai i20 or a BMW M340i – list the exact gap per cylinder bore size. Following those numbers can save you hours of troubleshooting down the road.
Design & Dimensions
| Ring Type | Material | Typical Gap (mm) |
|---|---|---|
| Compression Ring | Carbon‑Steel | 0.30‑0.45 |
| Oil Control Ring | Cast Iron | 0.25‑0.40 |
| Scraper Ring | Alloy Steel | 0.35‑0.50 |
Feature Comparison
| Feature | Standard OEM Ring | Performance Upgrade Ring | Aftermarket Ceramic Coated Ring |
|---|---|---|---|
| Gap Tolerance | ±0.05 mm | ±0.03 mm | ±0.02 mm |
| Heat Resistance | Up to 180 °C | Up to 250 °C | Up to 300 °C |
| Weight Reduction | 0 % | 5 % | 8 % |
| Price (USD) | $15 per set | $45 per set | $120 per set |
Engine Specifications That Influence Gap Choice
| Engine Model | Displacement | Bore (mm) | Recommended Gap (mm) |
|---|---|---|---|
| 2024 Ford Focus ST 2.3 L EcoBoost | 2.3 L | 84.5 | 0.38‑0.42 |
| Mercedes‑AMG C63 4.0 L Twin‑Turbo | 4.0 L | 92.0 | 0.45‑0.50 |
| Hyundai i20 1.0 L Turbo‑Petrol | 1.0 L | 71.0 | 0.30‑0.34 |
| BMW M340i 3.0 L Twin‑Turbo | 3.0 L | 84.0 | 0.40‑0.45 |
Price Comparison of Common Ring Sets
| Brand | Set Type | Price (USD) | Warranty |
|---|---|---|---|
| OEM (Ford) | Standard 3‑Ring Set | $18 | 12 months |
| ARP | Performance Steel Set | $55 | 24 months |
| Mahle | Ceramic Coated Set | $130 | 36 months |
| GMB | Heavy‑Duty Cast Iron Set | $42 | 18 months |
Real‑World Impact: A Personal Anecdote
Last summer I swapped the OEM rings on my 2022 Subaru WRX with a high‑performance Mahle set. I double‑checked the end gaps – 0.38 mm for the 2.0 L engine – and noticed an immediate improvement in throttle response. The turbo spooled up a fraction quicker, and I lost less than 0.5 L/100 km of fuel on the highway. That small adjustment reminded me why these gaps are not just a “box‑check” item.
When to Replace Rings – Warning Signs
- Blue smoke at idle (excess oil burning)
- Loss of power under boost (compression leak)
- Knocking or pinging after a cold start
- Increased oil consumption (>1 L/1000 km)
If you notice any of these, have a technician measure the gap before deciding on a full ring replacement.
Conclusion
End gaps are the unsung heroes of piston ring design. They keep the engine breathing, protect the cylinder walls, and preserve the power you expect from a turbo‑petrol or performance‑oriented vehicle. By understanding the correct specifications, measuring them accurately, and choosing the right material for your driving style, you can avoid costly repairs and keep your car performing at its best. So next time you’re planning a tune‑up, remember to give those tiny spaces the attention they deserve – your engine will thank you.
